Western Digital Data60 1ES2273 4U 1560TB SATA Hybrid Storage Platform

SKU: AH-RM460J-HE35

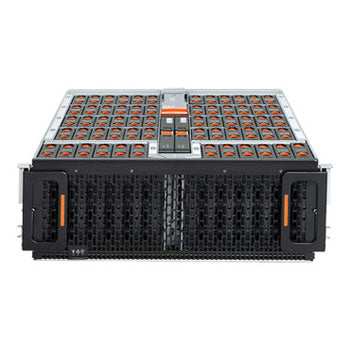

Featured Product Image

Key Features:

  • 60 Ultrastar HE 26TB SATA 6Gb/s 3.5 inch 7.2K RPM 4KN SE SMR-HM Hard Drives
  • 1560TB raw capacity in 4U
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty
Request a Quote

$0.00

Share this product:

Description

4U Data60 Storage Platform Populated with 60 x 26TB SATA 4KN SE SMR-HM Drives


System Overview

Drive Interface
 6 Gb/s SATA
Drive Capacity
 26 TB
Total Capacity 1560 TB
Host Interface Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Management SCSI Enclosure Services
Redfish (out of band, via RJ45)

Drive Bays

Max Drives
 60 x 3.5” drive bays

Cooling

Fans

4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 IO module fan
Dual PSUs with built-in fans

Power

Power Supply Dual redundant 1600 W or 1800 W
Certification 80 Plus Platinum

Dimensions

Form Factor JBOD storage enclosure
Rack Height 4U
Height 6.89" (175mm)
Width 17.61" (447mm)
Depth 28.03" (712mm)
Weight Product without drives: 60lbs (27.3kg)
Product with 60 HDDs: 175lbs (79.4kg)
