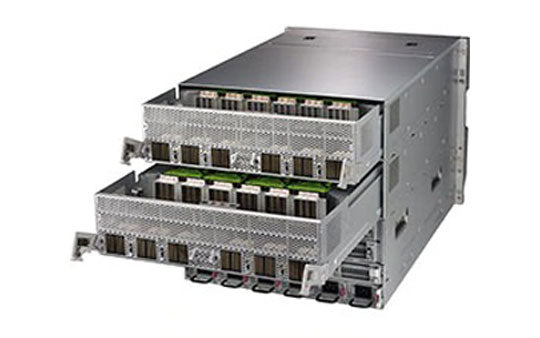

Supermicro 9029GP-TNVRT 10U GPU Server
Key Features
- AI / Deep Learning
- High-performance Computing
- Autonomous Vehicle Technology
- Supports 16 V100 SXM3 GPUs
- Dual Socket P (LGA 3647) support Intel® Xeon® Scalable processors
- Up to 3TB 3DS ECC LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
- 16 PCI-E 3.0 x16 for RDMA via IB EDR; 2 PCI-E 3.0 x16 on board
- Supports 16 V100 SXM3 350W GPUs with NVSwitch and NVLink
- Dual 10GBase-T LAN with Intel® X540
- 16 Hot-swap 2.5" NVMe drives, 6 Hot-swap 2.5" SATA3 drive bays
- 6 80mm Hot-swap PWM Fans, 8 92mm Hot-swap Fans
- 6 (5+1) 3000W Redundant Power Supplies; Titanium Level (96%+)
The Supermicro SuperServer 9029GP-TNVRT is a 27.75" depth 10U rackmount server that features dual Intel® Xeon® Scalable Processors, up to 3TB DDR4 ECC Registered Memory, built-in dual port 10GBase-T LAN ports, supports up to sixteen V100 SXM3 350W GPUs. The Supermicro 9029GP-TNVRT comes with sixteen hot-swap 2.5" NVMe drives, six hot-swap 2.5" drive bays, six 80mm hot-swap PWM fans, eight 92mm hot-swap fans, and six 3000W redundant titanium level power supplies.
