Western Digital Data102 1ES2264 4U 2652TB SATA Hybrid Storage Platform

SKU: AH-RM4102J-HE29

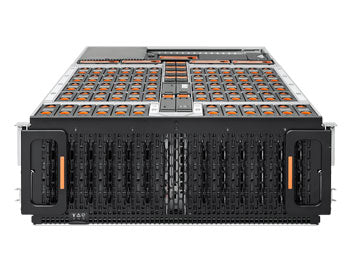

Featured Product Image

Key Features:

  • 102 Ultrastar HE 26TB SATA 6Gb/s 3.5 inch 7.2K RPM 4KN SE SMR-HM Hard Drives
  • 2652TB raw capacity in 4U
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty
Request a Quote

$0.00

Share this product:

Description

4U Data102 Storage Platform Populated with 102 x 26TB HC670 SATA 4KN SE SMR-HM Drives


System Overview

Drive Interface
 6 Gb/s SATA
Drive Capacity
 26.0 TB
Total Capacity 2652 TB
Host Interface Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Management SCSI Enclosure Services
Redfish (out of band, via RJ45)

Drive Bays

Max Drives
 102 x 3.5” drive bays

Cooling

Fans

4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention

1 I/O module fan

Dual PSUs with built-in fans

Power

Power Supply Dual 1600 W or 1800 W
Certification 80 Plus Platinum

Dimensions

Form Factor JBOD storage enclosure
Rack Height 4U
Height 6.89" (175mm)
Width 17.61" (447mm)
Depth 41.25" (1047mm)
Weight Product without drives: 103.6lbs (47kg)
Product with 102 HDDs: 266.8lbs (121.02kg)
