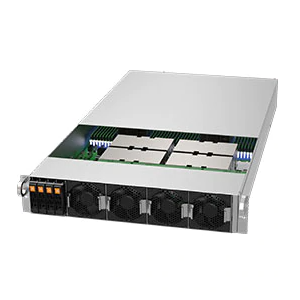

Supermicro 2124GQ-NART 2U GPU Server
SKU: GPU204-SA01
Description
High Density 2U System with NVIDIA® HGX™ A100, supporting up to 4 A100 SXM4 GPUs, 2 AMD EPYC™ 7003/7002 Series Processors, a maximum of 8TB DDR4 memory, and up to 4 Hot-swap 2.5" drive bays.
Processor
| CPU Quantity | 2 |
| CPU Socket | Socket SP3 |
| CPU Manufacturer | AMD |
| CPU Supported | Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) |
| Cores | Up to 128 Cores (64 per CPU) |
| GPU Support | Supports 4 A100 40GB SXM4 GPUs with NVlink GPU interconnect and PCIe Gen4 to host CPUs |
Memory
| Capacity Memory | Up to 8TB 3DS ECC DDR4-3200MHz SDRAM |
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2V |
| Memory Slots | 32 |
On-board
| Chipset | System on Chip (SoC) |
| Network Controllers | Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics & System Management | ASPEED AST2600 BMC |
Expansion Slots
| PCI Express | 4 PCI-E Gen 4 x16 (LP) slots 1 PCI-E Gen 4 x8 (LP) slot |
Drives Bays/Storage
| Hot-swap | 4 Hot-swap 2.5" drive bays (SATA/NVMe Hybrid or SAS with optional HBA) |
Input/Output
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GbE-aggregate host LAN ports 1 RJ45 1GbE Dedicated IPMI management port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA Connector (rear) |
| Others |
1 COM port (header) 1 TPM 2.0 (header) |
Cooling
| Fans | 4 Hot-swap heavy duty fans |
Power
| Power Supply | 2200 W |
| Certification | 80 Plus Titanium |
Dimensions
| Form Factor | Rackmount |
| Rack Height | 2U |
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 32.4" (823mm) |
| Color | Black |
