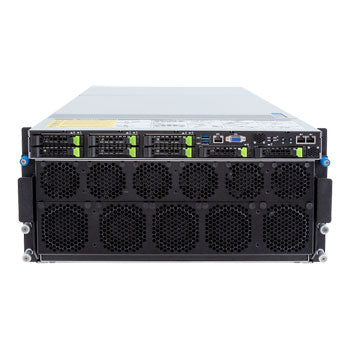

Gigabyte G593-SD1 5U GPU Server

SKU: AH-GPU508-GX03

Featured Product Image

Key Features:

  • NVIDIA HGX™ H200 8-GPU
  • 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32 x DIMMs
  • Dual ROM Architecture
  • Compatible with NVIDIA BlueField®-3 DPUs/SuperNICs
  • 2x 10Gb/s LAN ports via Intel® X710-AT2
  • 8x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4x FHHL PCIe Gen5 x16 slots8x LP PCIe Gen5 x16 slots
  • 4+2 3000W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 5U DP NVIDIA HGX™ H200 8-GPU

Processor

CPU Quantity Dual processor, TDP up to 350W
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported 5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
GPU Support Supports NVIDIA HGX™ H200 8-GPU

Memory

Memory Type DDR5 memory supported
Memory Speed

5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Memory Slots 32 DIMM Slots

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in Aspeed® AST2600
- 1x VGA port

Expansion Slots

PCI Express

PCIe Expansion Slots
NVIDIA HGX™ H200 with 8x SXM GPUs

Extension Board CPBG044 x 2:
- 8x LP x16 (Gen5 x16), from PEX89104

Riser Card CPBGD20 x 2:
- 4x FHHL x16 (Gen5 x16), from PEX89048

Drive Bays

Storage
 Front hot-swap:
8x 2.5" Gen5 NVMe/SATA/SAS-4
- (NVMe from PEX89104)

SAS card is required to support SAS drives.
RAID Intel® SATA RAID 0/1/10/5

Input/Output


Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x VGA port
2x  RJ45 ports
1x MLAN port (default port)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x Storage activity LED
1x System status LED

Rear I/O
 1x MLAN port
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

LAN

Front:
2x 10Gb/s LAN (1x Intel® X710-AT2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN

Rear:
1  10/100/1000 Mbps Management LAN

TPM 1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans

Motherboard:
2x 40x40x28mm (25,000rpm)
4x 60x60x56mm (24,000rpm)

PCIe slots:
4x 40x40x28mm (25,000rpm)
2x 40x40x56mm (32,000rpm)

GPU tray:
6x 60x60x76mm (21,700rpm)
11x 80x80x80mm (17,000rpm)

Power

Power Supply 4+2 3000W redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 5U
Height 8.64" (219.7mm)
Width 17.59" (447mm)
Depth 37.20" (945mm)
