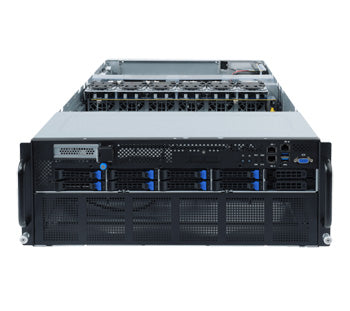

Gigabyte G482-Z52 4U GPU Server

SKU: AH-GPU408-GA07

Featured Product Image

Key Features:

  • Supports up to 8x Dual slot Gen4 GPUs
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 32x DIMMs
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 8x 2.5" SATA hot-swap bays
  • 8x FHFL PCIe Gen4 x16 slots for GPUs
  • 1x LP PCIe Gen4 x16 slot
  • 2+1 2200W 80 PLUS Platinum redundant power supplies
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 7003/7002 - 4U DP 8 x PCIe Gen4 GPUs

Processor

CPU Quantity Dual processor, cTDP up to 280W
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 Series Processors
EPYC™ 7002 Series Processors
GPU Support Up to 8 GPU

Memory

Memory Type DDR4 memory supported
8-Channel memory per processor
Memory Speed



RDIMM/LRDIMM: Up to 3200/2933 MT/s


Memory Slots 32

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

4x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs
4x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1x PCIe X16 (Gen4 x16) low-profile slot on rear side, from CPU_1*

SAS cards are not supported with internal cables due to cable routing limitations.

[Note] The system is only validated with a uniform GPU model.

Drive Bays

Storage

Front side:
8x 2.5" SATA hot-swappable bays, from CPU_0

SATA devices supported only

Input/Output

Front I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
Rear I/O
 N/A
Backplane I/O Speed and bandwidth:
SATA 6Gb/s
LAN Front side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
NCSI function supported

1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 12x 60x60x38mm (21,700rpm)

Power

Power Supply 2+1 2200W redundant power supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Rackmount
Rack Height 4U
Height 6.92" (176mm)
Width 17.63" (448mm)
Depth 34.64" (880mm)
