Gigabyte G363-ZR0-AAX4 3U GPU Server

SKU: AH-GPU308-GA04

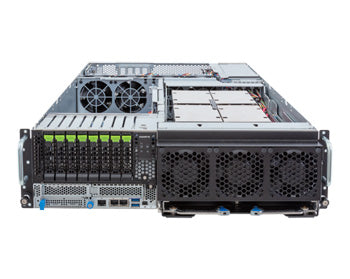

Featured Product Image

Key Features:

  • NVIDIA HGX™ H200 4-GPU
  • 4th-generation NVIDIA® NVLink™ 900GB/s
  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Broadcom® BCM57416
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 4x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
  • 4x 2.5" Gen5 NVMe hot-swap bays
  • 1x M.2 slot with PCIe Gen4 x4 interface
  • 6x LP PCIe Gen5 x16 slots
  • 2+1 3000W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 9005/9004 - 3U DP HGX™ H200 4-GPU

Processor

CPU Quantity Dual processor, cTDP up to 400W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD
CPU Supported EPYC™ 9005 Series Processors
EPYC™ 9004 Series Processors
GPU Support Up to 4 HGX H200 GPU

Memory

Memory Type DDR5 memory supported
Memory Speed AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 24

On-board

Chipset System on Chip
System Management
 ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in ASPEED® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

Front:
1x LP x16 (Gen5 x16), from CPU_0
1x LP x16 (Gen5 x16), from CPU_1

1x OCP NIC 3.0, from CPU_0, disabled

Rear:
4x LP x16 (Gen5 x16), from PEX89144, support RDMA
- (Equipped with full-height brackets)
M.2 Internal M.2 (CMTP192):
1x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

Drive Bays

Storage

Front hot-swap:
4x 2.5" Gen5 NVMe/SATA/SAS-4
4x 2.5" Gen5 NVMe
- (4x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)

SAS card is required for SAS devices support

Input/Output

Internal I/O
 1x M.2 slot
1x TPM header
1x OCP 3.0 slot
Front I/O
 2x USB 3.2 Gen1
1x Mini-DP
2x RJ45 (Intel I350)
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x System status LED
1x HDD access LED
Rear I/O
 2x RJ45 (Broadcom BCM57416)
1x MLAN (optional)
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Front side:
2x 1Gb/s LAN ports (1x Intel® I350-AM2)
Support NCSI function (by switch setting)

1x 10/100/1000 management LAN

Rear side:
2x 10Gb/s BASE-T LAN ports (1x Broadcom® BCM57416)
Support NCSI function (by switch setting)

1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 7x 80x80x80mm (17,000rpm)

Power

Power Supply 2+1 3000W (240V) redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 3U
Height 5.11" (130mm)
Width 17.63" (448mm)
Depth 31.49" (800mm)
