Home Shop Gigabyte G293-S47-AAP1 2U GPU Server

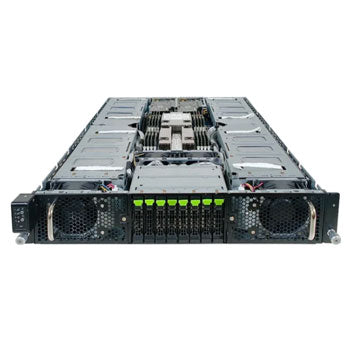

Gigabyte G293-S47-AAP1 2U GPU Server

SKU: AH-GPU208-GX04

Featured Product Image

Key Features:

  • Optimized for NVIDIA OVX™ L40S Server with 4 GPUs configuration
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR5 RDIMM, 16x DIMMs
  • Dual ROM Architecture
  • 2x 10Gb/s LAN ports via Broadcom® BCM57416
  • 8x 2.5" Gen5 NVMe/SATA hot-swap bays
  • Dual 3000W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP NVIDIA OVX™ 4 x PCIe Gen5 GPUs

Processor

CPU Quantity Dual processor, TDP up to 225W
CPU Socket Socket E (LGA 4677)
CPU Manufacturer Intel®
CPU Supported

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors

- NVIDIA OVX Specifications: 2x Intel® Xeon® Gold 6448Y
GPU Support Up to 4 GPU

Memory

Memory Capacity RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory Type

DDR5 memory supported only
8-Channel memory architecture

- NVIDIA OVX Specifications: Minimum 384GB DDR5 ECC (1 DIMM per slot)
Memory Speed 5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
Memory Slots 16

On-board

Chipset Intel® C741 Chipset
System Management
 Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Expansion Slots

PCI Express

Riser Card CRCG320 x 2:
- 2x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs

Riser Card CRSG22A x 2:
- 2x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs
- 1x PCIe x16 (Gen5 x16) FHFL slot, from DS320PR810

- NVIDIA OVX Specifications: 4x NVIDIA L40S
- NVIDIA OVX Specifications: 1x BlueField-3, B3220 (2x200Gb)

Riser Card CRSG01F x 2:
- 1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

- NVIDIA OVX Specifications: 2x ConnectX-7 (2x200Gb)

Drive Bays

Storage
 Front side:
8x 2.5" Gen5 NVMe/SATA hot-swappable bays
- (4x NVMe from CPU_0, 4x NVMe from CPU_1)

- NVIDIA OVX Specifications: 1x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2x 4TB NVMe Host Storage
RAID Intel® SATA RAID 0/1/10/5

Input/Output

Internal I/O
 1x TPM header
1x VROC connector
Front I/O
 1x Power button with LED
1x ID button with LED
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x System status LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s
LAN Rear side:
2x 10Gb/s LAN ports (1x Broadcom® BCM57416)
Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 6x 80x80x38mm (18,300rpm)

Power

Power Supply Dual 3000W redundant power supplies
Certification 80 Plus Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.63" (448mm)
Depth 31.49" (800mm)
