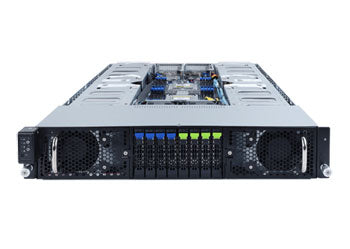

Gigabyte G292-Z46 2U GPU Server

SKU: AH-GPU208-GA09

Featured Product Image

Key Features:

  • Supports up to 4 dual-slot GPU cards
  • AMD EPYC™ 7003 series processors
  • Dual processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 16 DIMMs
  • 4x 2.5" Gen4 NVMe/SATA hot-swappable bays
  • 4x 2.5" SATA hot-swappable bays
  • 4x FHFL PCIe Gen4 x16 slots for GPUs
  • 2x LP PCIe Gen4 x16 slots for add-on cards
  • 2+0 2200W 80 PLUS Platinum power supplies
Request a Quote

$0.00

Share this product:

Description

HPC 2U DP 4x Gen4 GPU Server | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 2
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads
GPU Support Up to 4 GPU

Memory

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed 3200 MHz
Memory Slots 16

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

4x PCIe x16 (Gen4 x16) or 8x PCIe x16 (Gen4 x8) FHFL slots, for GPUs
1x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

Drive Bays

Storage
 Front side:
4x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4x 2.5" SATA/SAS hot-swappable bays
(2x NVMe from CPU_0, 2x NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support

Input/Output

Internal I/O
 1x TPM header
Front I/O
 1x Power button with LED
1x ID button with LED
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
1x Reset button
Rear I/O
 2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller)
1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 8x 80x80x38mm (16,300rpm)

Power

Power Supply 2+0 2200W power supplies
Certification 80 Plus Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.63" (448mm)
Depth 31.49" (800mm)
