Gigabyte G242-Z11 2U GPU Server

SKU: AH-GPU208-GA13

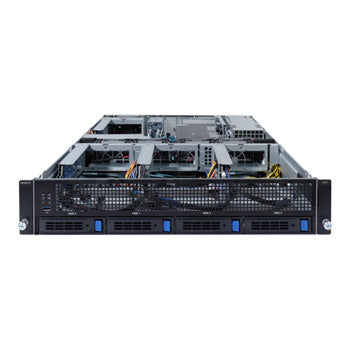

Featured Product Image

Key Features:

  • Up to 4x NVIDIA® PCIe Gen4 GPU cards
  • NVIDIA-Certified system for scalability, functionality, security, and performance
  • Single AMD EPYC™ 7003 series processor
  • 8-Channel RDIMM/LRDIMM DDR4, 8x DIMMs
  • 4x 3.5"/2.5" SATA hot-swappable bays
  • 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x FHHL PCIe Gen4 x16 and x8 slots
  • 1x OCP 3.0 Gen4 x16 slot
  • Dual 1600W 80 PLUS Platinum redundant power supply
Request a Quote

$0.00

Share this product:

Description

HPC/AI Server - AMD EPYC™ 7003 - 2U UP 4x PCIe Gen4 GPUs | Application: AI, AI Training, AI Inference & HPC

Processor

CPU Quantity 1
CPU Socket Socket SP3 (LGA 4094)
CPU Manufacturer AMD
CPU Supported EPYC™ 7003 series processors
Cores Up to 64-cores, 128 threads
GPU Support Up to 4x NVIDIA® PCIe Gen4 GPU

Memory

Memory Capacity RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory Type DDR4 memory supported only
Memory Speed Up to 3200 MHz
Memory Slots 8

On-board

Chipset System on Chip
System Management
 Aspeed® AST2500 management controller
Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video
 Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Expansion Slots

PCI Express

4x PCIe x16 (Gen4 x16) FHFL slots, for GPUs

Riser Card CRSG120:
1x PCIe x16 (Gen4 x16 or x8) FHHL slot
1x PCIe x8 (Gen4 x0 or x8) FHHL slot

1x OCP 3.0 slot with PCIe Gen4 x16 bandwidth
NCSI function supported

Drive Bays

Storage
 Front side:
4x 3.5"/2.5" SATA hot-swappable bays

SATA devices supported only

Rear side:
2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

SAS card is required for SAS devices support

Input/Output

Internal I/O
 1x TPM header
1x Front panel header
Front I/O
 1x USB 3.0
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD activity LED
Rear I/O
 2x USB 3.0
1x VGA
1x MLAN
1x ID LED
Backplane I/O Speed and bandwidth:
Front side - CBPG041: SATA 6Gb/s
Rear side - CBP2021: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear side:
1x 10/100/1000 management LAN
TPM 1 TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Cooling

System Fans 5x 80x80x38mm (16,300rpm)

Power

Power Supply Dual 1600W redundant power supplies
Certification 80 PLUS Platinum

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 32.28" (820mm)
