Gigabyte E283-Z90-AAV1 2U Rackmount Server

SKU: AH-RM204-GA02

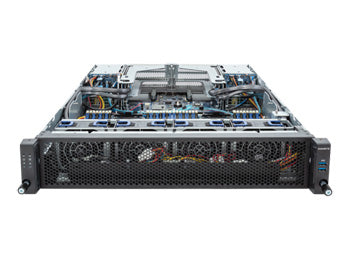

Featured Product Image

Key Features:

  • Dual AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24x DIMMs
  • Dual ROM Architecture
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 4x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays on the rear side
  • 2x M.2 slots with PCIe Gen3 x4 and x2 interface
  • 6x FHHL PCIe Gen5 x16 and x8 slots
  • 2x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

Edge Server - AMD EPYC™ 9005/9004 - 2U DP 4-Bay Gen4 NVMe/SATA/SAS Titanium

Processor

CPU Quantity Dual processor, cTDP up to 400W
CPU Socket LGA 6096
Socket SP5
CPU Manufacturer AMD®
CPU Supported AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Memory

Memory Type DDR5 memory supported
12-Channel memory per processor
Memory Speed

AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 24

On-board

Chipset System on Chip
System Management
 ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in ASPEED® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

Riser Card CRS101T:
- 1x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS101Q:
- 1x FHHL x16 (Gen5 x16), from CPU_1

Riser Card CRS202M:
- 1x FHHL x16 (Gen5 x16), from CPU_0
- 1x FHHL x16 (Gen5 x8), from CPU_0

Riser Card CRS202N:
- 1x FHHL x16 (Gen5 x16), from CPU_1
- 1x FHHL x16 (Gen5 x8), from CPU_0

1x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
M.2

Internal M.2:
1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA
1x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

Drive Bays

Storage
 Rear hot-swap:
4x 2.5" Gen4 NVMe/SATA/SAS
- (NVMe from CPU_1)
- (SATA via CRS2810 from CPU_1)
RAID Require RAID add-in cards

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 G-SCM board - CDCR114:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
2x RJ45 ports
1x MLAN port
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear (G-SCM board - CDCR114):
2x 1Gb/s LAN (1x Intel® I350-AM2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm

Power

Power Supply Dual 1600W redundant power supplies
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 24.60" (625mm)
Weight Net Weight: 22.39 kg
Gross Weight: 27.39 kg
