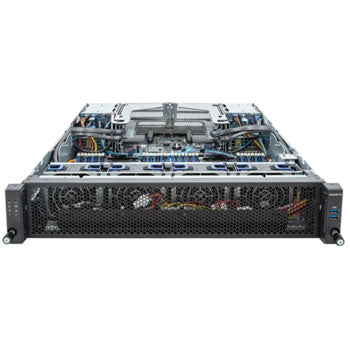

Gigabyte E283-S90-AAV1 2U Rackmount Server

SKU: AH-RM204-GX05

Featured Product Image

Key Features:

  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • Dual Intel® Xeon® CPU Max Series
  • 8-Channel DDR5 RDIMM, 32x DIMMs
  • Dual ROM Architecture
  • 2x 1Gb/s LAN ports via Intel® I350-AM2
  • 4x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays on the rear side
  • 6x FHHL PCIe Gen5 x16 slots
  • 2x OCP NIC 3.0 PCIe Gen5 x16 slots
  • Dual 1600W 80 PLUS Titanium redundant power supply
Request a Quote

$0.00

Share this product:

Description

Edge Server - Intel® Xeon® 6 Processors - 2U DP 4-Bay Gen5 NVMe/SATA/SAS-4

Processor

CPU Quantity Dual processor, TDP up to 350W
CPU Socket LGA 4677
Socket E
CPU Manufacturer Intel®
CPU Supported 5th Generation Xeon® Scalable Processors
4th Generation Xeon® Scalable Processors
Xeon® CPU Max Series

Memory

Memory Type DDR5 memory supported
8-Channel memory per processor
Memory Speed

5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Memory Slots 32

On-board

Chipset Intel® C741
System Management
 ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in ASPEED® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

Riser Card CRS101J:
- 1x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS101K:
- 1x FHHL x16 (Gen5 x16), from CPU_1

Riser Card CRS202G:
- 2x FHHL x16 (Gen5 x16), from CPU_0 [1]

Riser Card CRS202H:
- 2 x FHHL x16 (Gen5 x16), from CPU_1

1x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function


[1] Slot_10 is downgraded to Gen4 when using XCC CPUs with 4x UPI.

Drive Bays

Storage

Rear hot-swap:
4x 2.5" Gen4 NVMe/SATA/SAS
- (2x NVMe from CPU_0, 2x NVMe from CPU_1)

SAS card is required to support SAS drives.
RAID Intel® SATA RAID 0/1/10/5
Onboard VROC key header

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
2x LAN activity LEDs
1x Storage activity LED
1x System status LED
Rear I/O
 G-SCM board - CDCR112:
2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
2x RJ45 ports
1x MLAN port
1x ID LED
Backplane I/O Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN Rear (G-SCM board - CDCR112):
2x 1Gb/s LAN (1x Intel® I350-AM2)
- Support NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Cooling

System Fans 4x 80x80x38mm (18,300rpm)

Power

Power Supply Dual 1600W redundant power supplies
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 24.60" (625mm)
Weight Net Weight: 21.5 kg
Gross Weight: 26.5 kg
