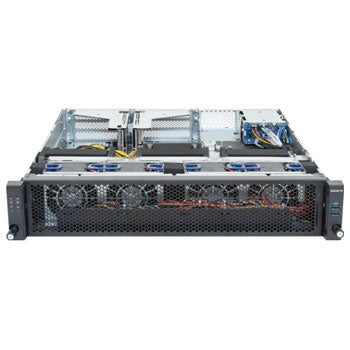

Gigabyte E263-Z34-AAJ1 2U GPU Server

SKU: AH-GPU202-GA02

Featured Product Image

Key Features:

  • Supports up to 2 x Dual slot Gen5 GPUs
  • Single AMD EPYC™ 9005/9004 Series Processors
  • 12-Channel DDR5 RDIMM, 12 x DIMMs
  • Dual ROM Architecture
  • 1x 1Gb/s LAN port via Intel® I210-AT
  • 2x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays on the rear side
  • 1x M.2 slot with PCIe Gen3 x4 interface
  • 2x FHFL PCIe Gen5 x16 slots for GPUs
  • 2x OCP NIC 3.0 PCIe Gen5 x16 slots
  • 1+1 2000W 80 PLUS Titanium redundant power supplies
Request a Quote

$0.00

Share this product:

Description

Edge Server - AMD EPYC™ 9005/9004 - 2U UP 2 x PCIe Gen5 GPUs Titanium

Processor

CPU Quantity Single processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W
CPU Socket Socket SP5 (LGA 6096)
CPU Manufacturer AMD ®
CPU Supported EPYC™ 9005 Series Processors
EPYC™ 9004 Series Processors
GPU Support Up to 2x Dual-Slot Gen5 GPUs

Memory

Memory Type DDR5 memory supported
12-Channel memory per processor
Memory Speed

AMD EPYC™ 9005:
RDIMM: Up to 6400 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Memory Slots 12

On-board

Chipset System on Chip
System Management
 ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
Video
 Integrated in ASPEED® AST2600
- 1x Mini-DP

Expansion Slots

PCI Express

Riser Card CRS201H:
- 1x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS201M:
- 1x FHFL x16 (Gen5 x16), for GPUs

2x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
M.2 Internal M.2:
1x M.2 (2280/22110), PCIe Gen3 x4

Drive Bays

Storage
 Rear hot-swap:
2x 2.5" Gen5 NVMe/SATA/SAS-4

SAS card is required for SAS devices support

Input/Output

Front I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x Storage activity LED
1x System status LED
Rear I/O
 2x USB 3.2 Gen1 ports (Type-A)
1x Mini-DP
1x RJ45 port
1x MLAN port
1x ID button with LED
Backplane I/O Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
LAN Rear:
1x 1Gb/s LAN (1x Intel® I210-AT)
- Supports NCSI function

1x 10/100/1000 Mbps Management LAN
TPM 1x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

Cooling

System Fans 4x 80x80x56mm (15,500rpm)

Power

Power Supply 1+1 2000W redundant power supplies
Certification 80 PLUS Titanium

Dimensions

Form Factor Rackmount
Rack Height 2U
Height 3.44" (87.5mm)
Width 17.24" (438mm)
Depth 20.47" (520mm)
